MACHINES

These machines allow the agglomeration of all types of thermo-setting bonding wires like copper, aluminium and wrapped wires.

Temperature measurement is provided by direct control of the resistor variations. The speed of temperature increase is controlled to avoid thermal gradient.

Permanent control of product & process parameters with continuous self-control of polymerization temperature with standard generator in complement of temperature calculator.

i GPE4
i GPE 3

i GPE 4 iv

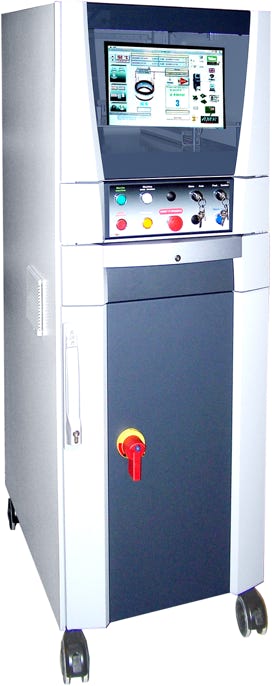

i GPE 4

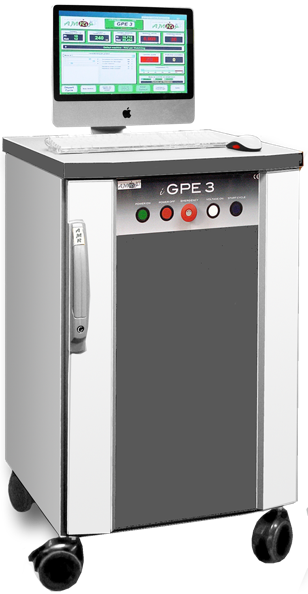

i GPE 3

i GPE 3 LC

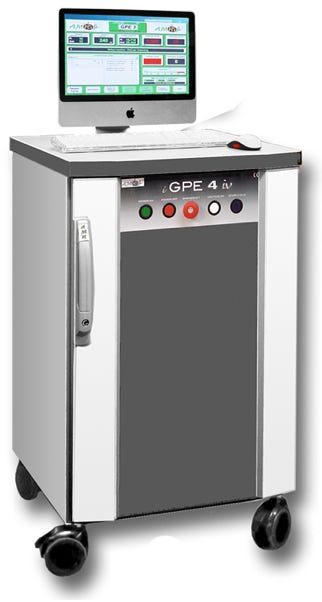

i GPE4 IV

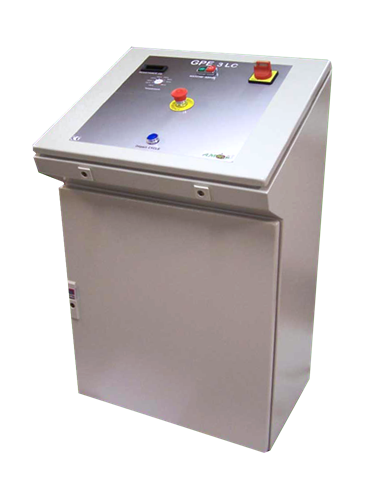

i GPE3LC

APPLICATION


Polymerization machine using Joule effect according to small series of industrial production



OPERATION


The i GPE3 versatility allows the production of small windings of some hundreds g of copper (<1000 pieces per day) as well as windings of Kg of copper ( < 100 pieces per Day)

APPLICATION


Polymerization machine using Joule effect according to large scale industrial productions.


OPERATION


The i GPE4 versatility allows the production of small windings of some hundreds g of copper (< 3000 pieces per day) as well as windings of Kg of copper ( < 100 pieces per Day)

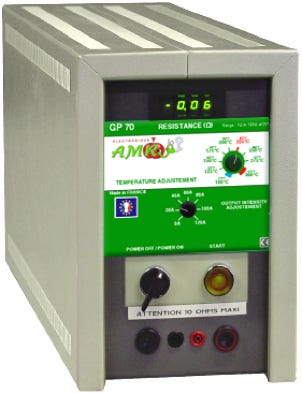

GP 70

GP70

APPLICATION


Polymerization machine using Joule effect intended for repair (Motor of 15 Kw max)
